Suspension set heavy-duty; 2x each ceiling mount, wire rope 2 m, mounting clamps, set screw M4.The Mitras® LX6, LX7 as well as Mitras Lightbar 2 can be suspended with a high-quality patented suspension set consisting of ceiling brackets, wire ropes and wire rope holders. This suspension set allows the continuous adjustment of the luminaires above the Becke.
Universal light holder suitable for Mitras LX6 / LX7 with 4 or 6 clusters as well as Mitras Lightbar 1 and 2. 2 Mitras Flex Mount System 1 are required for mounting Mitras Lightbar 1/2.The stylish and sophisticated design of the Mitras Flex Mount System allows maximum flexibility with maximum stability. The high-quality mounting system made of aluminum, stainless steel and acrylic glass is adjustable in height and depth and is also suitable for the Mitras LX6 series.Picture shows light holder with installed LED light Mitras LX7 - holder is supplied without LED light Mitras LX7.
Adapter kit for Mitras LX6, to attach to the Mitras Flex Mount System 1;each 2x acrylic cylinders, two mounting screws.Replaces the mounting bolts of the Flex Mount System 1, so that this can be used for Mitras LX6.
Universal luminaire holder suitable for Mitras LX6 / LX7 with 4 or 6 clusters for parallel Mitras LX installation (light alignment from left to right)The stylish and sophisticated design of the Mitras Flex Mount System allows maximum flexibility with maximum stability. The high-quality mounting system made of aluminum, stainless steel and acrylic glass is adjustable in height and depth and is also suitable for the Mitras LX6 series.Picture shows luminaire holder with installed LED luminaire Mitras LX7 - holder is supplied without LED luminaire Mitras LX7.
With the Mitras LB splitter 1-4 Mitras Lightbar can be connected to one power supply unit. All connection fittings (for Lightbars, power supply, interface to ProfiLux) are waterproof according to IP67..
Die in Deutschland gefertigte Mitras Lightbar bietet Ihnen:
Homogenes, brillantes und sehr helles Licht durch eine
ausgewogene Mischung aus selektierten High-Power-LEDs in natürlichen
Farben (CRI >95, weiße LEDs 150 lm/W)
Maximale Ausgangsleistung durch GHL Power Balancing Technology®
Supersanfte Dimmung mit der GHL Perfect Dimming Techology®
Gleichmäßig breite Lichtverteilung mit einem LED Abstrahlwinkel von 120°
Energieeffizienz und lange Lebensdauer durch ein ausgeklügeltes Wärmemanagement (mindestens 60.000 Betriebsstunden)
Bei Ansteuerung durch den ProfiLux Aquariencomputer:
Professionelle Lichtdimmung, individuelle Mischung des Farbspektrums und
wassertemperaturabhängige Abregelung (Licht wird gedimmt wenn Wasser zu
warm wird).
Volle ungedimmte Lichtpower bei Betrieb ohne ProfiLux (alle LEDs leuchten auf 100%)
Energieeinsparung gegenüber herkömmlicher Beleuchtung ca. 50%
Betrieb mit ungefährlicher Spannung (24 V)
Mitras LB Actinic (Meerwasser oberes-mittleres Riff)
.tg {border-collapse:collapse;border-spacing:0;border-color:#999;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#999;color:#444;background-color:#F7FDFA;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#999;color:#fff;background-color:#26ADE4;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-1brr{background-color:#00b0f0}
.tg .tg-g6tm{background-color:#34bcf9;text-align:center}
.tg .tg-wh73{background-color:#34bcf9;text-align:center;vertical-align:top}
.tg .tg-yw4l{vertical-align:top}
@media screen and (max-width: 767px) {.tg {width: auto !important;}.tg col {width: auto !important;}.tg-wrap {overflow-x: auto;-webkit-overflow-scrolling: touch;}}
Modell
40
50
60
70
80
90
100
110
120
130
140
150
160
Empf. für Aquarienlänge [cm]
39-50
49-60
59-70
69-80
79-90
89-100
99-110
109-120
119-130
129-140
139-150
149-160
159-170
Max. Leistungsaufnahme ungedimmt [W]
23,5
30,0
36,5
43,0
50,0
56,5
63,0
70,0
77,0
84,0
90,5
98,5
105,5
Montage im Becken
Mit den mitgelieferten Haltebügeln aus Edelstahl kann Mitras Lightbar 2 bequem über jedem Becken montiert werden.

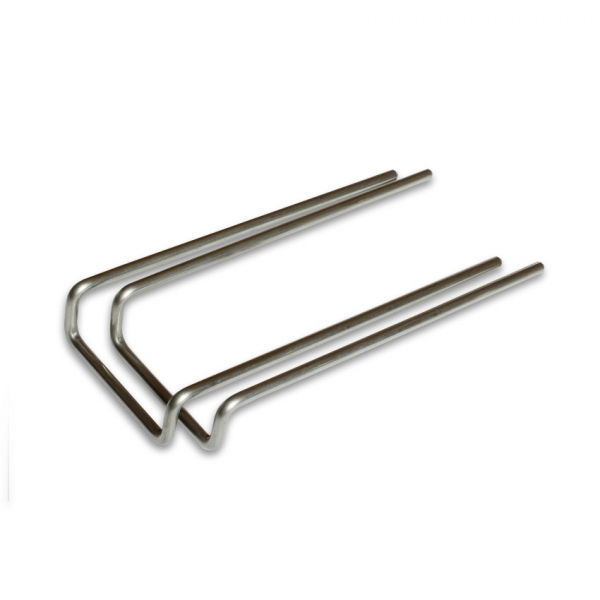

Für beengte Platzverhältnisse im Becken ist auch ein flacher Haltebügel erhältlich.
Betriebsarten
Die Mitras Lightbar kann ungedimmt und gedimmt betrieben werden.
Beim ungedimmten Betrieb leuchten alle LEDs bei 100%. Es wird keine Steuerung benötigt. Das Ein- und Ausschalten kann über eine einfache Zeitschaltuhr vorgenommen werden.
Eine weitere Option ist hingegen die Lightbar gedimmt mit einem ProfiLux Computer (ab Version 3) zu betreiben. Alle Farbkanäle können somit unabhängig voneinander gedimmt werden. So sind alle Simulationsprogramme des ProfiLux Computers wie Sonnenauf- und Untergang, Wolkensimulation, Gewitter oder kalendarische Mondphasensimulation möglich.
Technische Daten:
Empfohlen für Meerwasser
Mittlere Farbtemperatur: 14000 K
7 Farbkanäle (dimmbar mit ProfiLux Aquariencomputer)
LED-Ausstattung pro 10 cm Leuchtbalken:
1x Hyperviolett
1x Royal blue
1x 8000 K
1x 6500 K
4x Cree rot, grün und blau
Weiße LEDs mit 150 lm/W
Spektrum: Alle Farbkanäle bei 100%
Die in Deutschland gefertigte Mitras Lightbar bietet Ihnen:
Homogenes, brillantes und sehr helles Licht durch eine
ausgewogene Mischung aus selektierten High-Power-LEDs in natürlichen
Farben (CRI >95, weiße LEDs 150 lm/W)
Maximale Ausgangsleistung durch GHL Power Balancing Technology®
Supersanfte Dimmung mit der GHL Perfect Dimming Techology®
Gleichmäßig breite Lichtverteilung mit einem LED Abstrahlwinkel von 120°
Energieeffizienz und lange Lebensdauer durch ein ausgeklügeltes Wärmemanagement (mindestens 60.000 Betriebsstunden)
Bei Ansteuerung durch den ProfiLux Aquariencomputer:
Professionelle Lichtdimmung, individuelle Mischung des Farbspektrums und
wassertemperaturabhängige Abregelung (Licht wird gedimmt wenn Wasser zu
warm wird).
Volle ungedimmte Lichtpower bei Betrieb ohne ProfiLux (alle LEDs leuchten auf 100%)
Energieeinsparung gegenüber herkömmlicher Beleuchtung ca. 50%
Betrieb mit ungefährlicher Spannung (24 V)
Mitras LB Actinic (Meerwasser oberes-mittleres Riff)
.tg {border-collapse:collapse;border-spacing:0;border-color:#999;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#999;color:#444;background-color:#F7FDFA;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#999;color:#fff;background-color:#26ADE4;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-1brr{background-color:#00b0f0}
.tg .tg-g6tm{background-color:#34bcf9;text-align:center}
.tg .tg-wh73{background-color:#34bcf9;text-align:center;vertical-align:top}
.tg .tg-yw4l{vertical-align:top}
@media screen and (max-width: 767px) {.tg {width: auto !important;}.tg col {width: auto !important;}.tg-wrap {overflow-x: auto;-webkit-overflow-scrolling: touch;}}
Modell
40
50
60
70
80
90
100
110
120
130
140
150
160
Empf. für Aquarienlänge [cm]
39-50
49-60
59-70
69-80
79-90
89-100
99-110
109-120
119-130
129-140
139-150
149-160
159-170
Max. Leistungsaufnahme ungedimmt [W]
23,5
30,0
36,5
43,0
50,0
56,5
63,0
70,0
77,0
84,0
90,5
98,5
105,5
Montage im Becken
Mit den mitgelieferten Haltebügeln aus Edelstahl kann Mitras Lightbar 2 bequem über jedem Becken montiert werden.
Für beengte Platzverhältnisse im Becken ist auch ein flacher Haltebügel erhältlich.
Betriebsarten
Die Mitras Lightbar kann ungedimmt und gedimmt betrieben werden.
Beim ungedimmten Betrieb leuchten alle LEDs bei 100%. Es wird keine Steuerung benötigt. Das Ein- und Ausschalten kann über eine einfache Zeitschaltuhr vorgenommen werden.
Eine weitere Option ist hingegen die Lightbar gedimmt mit einem ProfiLux Computer (ab Version 3) zu betreiben. Alle Farbkanäle können somit unabhängig voneinander gedimmt werden. So sind alle Simulationsprogramme des ProfiLux Computers wie Sonnenauf- und Untergang, Wolkensimulation, Gewitter oder kalendarische Mondphasensimulation möglich.
Technische Daten:
Empfohlen für Meerwasser
Mittlere Farbtemperatur: 14000 K
7 Farbkanäle (dimmbar mit ProfiLux Aquariencomputer)
LED-Ausstattung pro 10 cm Leuchtbalken:
1x Hyperviolett
1x Royal blue
1x 8000 K
1x 6500 K
4x Cree rot, grün und blau
Weiße LEDs mit 150 lm/W
Spektrum: Alle Farbkanäle bei 100%
The Mitras Lightbar made in Germany offers you:
Homogeneous, brilliant and very bright light due to a
balanced mixture of selected high-power LEDs in natural
Colors (CRI >95, white LEDs 150 lm/W)
Maximum output power through GHL Power Balancing Technology®.
Super smooth dimming with GHL Perfect Dimming Techology®.
Evenly wide light distribution with a 120° LED beam angle.
Energy efficiency and long service life due to sophisticated thermal management (at least 60,000 operating hours)
When controlled by the ProfiLux aquarium computer:
Professional light dimming, individual mixing of the color spectrum and
water temperature-dependent regulation (light is dimmed when water becomes too
becomes warm).
Full undimmed light power when operating without ProfiLux (all LEDs light up to 100%).
Energy savings compared to conventional lighting about 50%.
Operation with non-hazardous voltage (24 V)
Mitras LB Deep Actinic
(seawater)
.tg {border-collapse:collapse;border-spacing:0;border-color:#999;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#999;color:#444;background-color:#F7FDFA;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#999;color:#fff;background-color:#26ADE4;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-1brr{background-color:#00b0f0}
.tg .tg-g6tm{background-color:#34bcf9;text-align:center}
.tg .tg-wh73{background-color:#34bcf9;text-align:center;vertical-align:top}
.tg .tg-yw4l{vertical-align:top}
@media screen and (max-width: 767px) {.tg {width: auto !important;}.tg col {width: auto !important;}.tg-wrap {overflow-x: auto;-webkit-overflow-scrolling: touch;}}
model
40
50
60
70
80
90
100
110
120
130
140
150
160
Recommended for aquarium length [cm]
39-50
49-60
59-70
69-80
79-90
89-100
99-110
109-120
119-130
129-140
139-150
149-160
159-170
Max. Power consumption undimmed [W]
23.5
30.0
36.5
43.0
50.0
56.5
63.0
70.0
77.0
84.0
90.5
98.5
105.5
Mounting in the basin.
Mitra's Lightbar 2 can be conveniently mounted over any sink with the included stainless steel mounting brackets.
A flat mounting bracket is also available for confined pool spaces.
Operating modes
The Mitras Lightbar can be operated in an undimmed and dimmed mode.
In undimmed operation, all LEDs light at 100%. No control is required. Switching on and off can be done by a simple timer.
Another option, on the other hand, is to operate the Lightbar dimmed with a ProfiLux computer (version 3 or higher). All color channels can thus be dimmed independently of each other. So all simulation programs of the ProfiLux Computer like sunrise and sunset, cloud simulation, thunderstorm or calendrical moon phase simulation are possible.
Technical data: .
Recommended for marine water Average color temperature: 18500 K.
7 color channels (dimmable with ProfiLux aquarium computer).
LED equipment per 10 cm light bar:
1x Hyperviolet
1x Royal blue
1x 8000 K
1x Deep blue
4x Cree red, green and blue
White LEDs with 150 lm/W
Spectrum: All color channels at 100%.
The Mitras Lightbar made in Germany offers you:
Homogeneous, brilliant and very bright light due to a
balanced mixture of selected high-power LEDs in natural
Colors (CRI >95, white LEDs 150 lm/W)
Maximum output power through GHL Power Balancing Technology®.
Super smooth dimming with GHL Perfect Dimming Techology®.
Evenly wide light distribution with a 120° LED beam angle.
Energy efficiency and long service life due to sophisticated thermal management (at least 60,000 operating hours)
When controlled by the ProfiLux aquarium computer:
Professional light dimming, individual mixing of the color spectrum and
water temperature-dependent regulation (light is dimmed when water becomes too
becomes warm).
Full undimmed light power when operating without ProfiLux (all LEDs light up to 100%).
Energy savings compared to conventional lighting about 50%.
Operation with non-hazardous voltage (24 V)
Mitras LB Deep Actinic
(seawater)
.tg {border-collapse:collapse;border-spacing:0;border-color:#999;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#999;color:#444;background-color:#F7FDFA;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#999;color:#fff;background-color:#26ADE4;}
.tg .tg-baqh{text-align:center;vertical-align:top}
.tg .tg-1brr{background-color:#00b0f0}
.tg .tg-g6tm{background-color:#34bcf9;text-align:center}
.tg .tg-wh73{background-color:#34bcf9;text-align:center;vertical-align:top}
.tg .tg-yw4l{vertical-align:top}
@media screen and (max-width: 767px) {.tg {width: auto !important;}.tg col {width: auto !important;}.tg-wrap {overflow-x: auto;-webkit-overflow-scrolling: touch;}}
model
40
50
60
70
80
90
100
110
120
130
140
150
160
Recommended for aquarium length [cm]
39-50
49-60
59-70
69-80
79-90
89-100
99-110
109-120
119-130
129-140
139-150
149-160
159-170
Max. Power consumption undimmed [W]
23.5
30.0
36.5
43.0
50.0
56.5
63.0
70.0
77.0
84.0
90.5
98.5
105.5
Mounting in the basin.
Mitra's Lightbar 2 can be conveniently mounted over any sink with the included stainless steel mounting brackets.
A flat mounting bracket is also available for confined pool spaces.
Operating modes
The Mitras Lightbar can be operated in an undimmed and dimmed mode.
In undimmed operation, all LEDs light at 100%. No control is required. Switching on and off can be done by a simple timer.
Another option, on the other hand, is to operate the Lightbar dimmed with a ProfiLux computer (version 3 or higher). All color channels can thus be dimmed independently of each other. So all simulation programs of the ProfiLux Computer like sunrise and sunset, cloud simulation, thunderstorm or calendrical moon phase simulation are possible.
Technical data: .
Recommended for marine water Average color temperature: 18500 K.
7 color channels (dimmable with ProfiLux aquarium computer).
LED equipment per 10 cm light bar:
1x Hyperviolet
1x Royal blue
1x 8000 K
1x Deep blue
4x Cree red, green and blue
White LEDs with 150 lm/W
Spectrum: All color channels at 100%.
