EP 3 - MCS (3-channel expansion module MCS1 )
Expansion module for MCS-1
EP 3-MCS + 3 metering pumps
(Operation only üvia MCS1)
Additional modules are connected to the base unit with the supplied connection cable and are controlled via the base unit.
Up to 3 EP add-on devices can be connected.
Dosing pump for the daily automatic re-dosing of trace elements.
- By menu-guided programming are at all channels dosing quantity, time, and frequency individually adjustable and can be switched off on a daily basis.
- Adjustable dosing amount 0-2999ml/day.
- Dosage frequency up to 24 times per day.
- Calibratable.
- All pumps are suitable for iodine!
(lxwxh) 150 x 230 x 60 mm
Power supply, connecting cable, extension hose for pumps.
Made in Germany !
WEEE Reg. No. DE 35240640
Shipping weight:
1.10 Kg
Article weight:
1.00 Kg

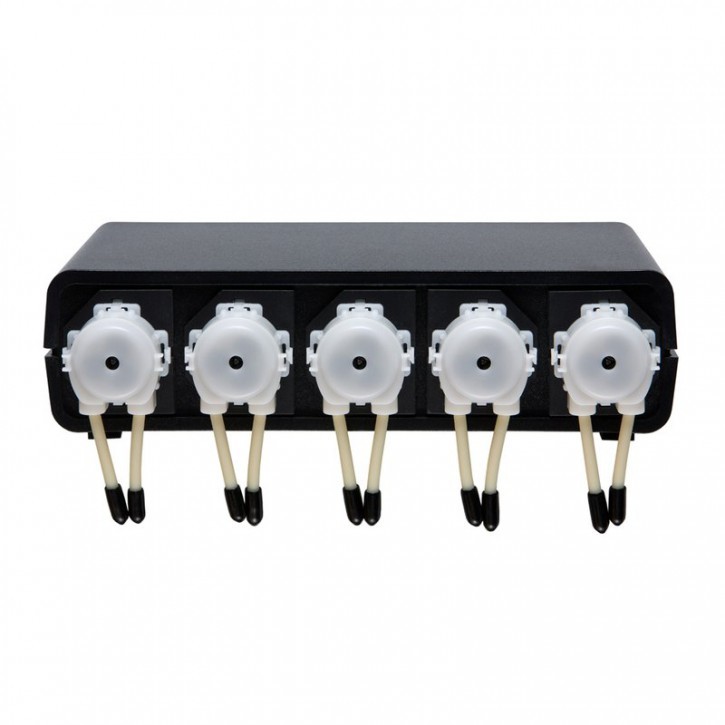

Expansion module for MCS-1
EP 5-MCS + 5 dosing pumps
(Operation only üvia MCS1)
Additional modules are connected to the base unit with the supplied connection cable and are controlled via the base unit.
Up to 3 EP add-on units can be connected.
Dosing pump for daily automatic re-dosing of trace elements.
- By menu-guided programming are at all channels dosing quantity, time, and frequency individually adjustable and can be switched off on a daily basis.
- Adjustable dosing amount 0-2999ml/day.
- Dosage frequency up to 24 times per day.
- Calibratable.
- All pumps are suitable for iodine!
(lxwxh) 150 x 230 x 60 mm
Power supply, connecting cable, extension hose for pumps.
Made in Germany !
WEEE Reg. No. DE 35240640
Shipping weight:
1.20 Kg
Article weight:
1.00 Kg

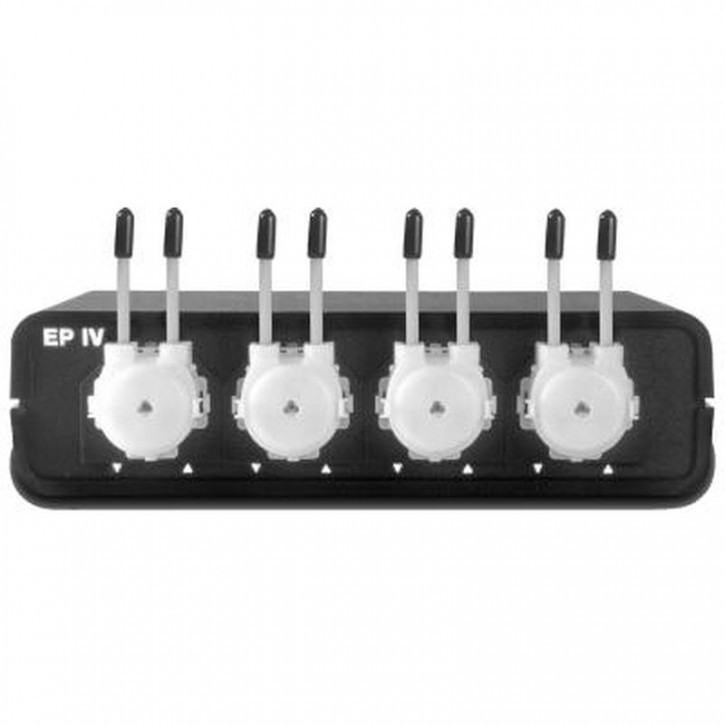

Expansion modules for TEC IIING or TEC 4NG + 4 dosing pumps 0-1999 ml/day
(operation only über TEC III NG or TEC 4NG)
- Up to 2 additional modules can be connected to TEC IIING or TEC 4NG.
- Additional modules are connected to the base unit with the supplied connection cable and controlled via the base unit.EP II + EP IV pumps are individually programmable.
- Pumps always feed time-delayed.
- EP IV voltage supply through the base unit.
- EP IV +4 dosing pumps 0-1999 ml/day
(lxwxh) 150 x 230 x 60 mm
Incl. 2 meter connection line.
Made in Germany !
WEEE Reg. No. DE 35240640
Shipping weight:
1.00 Kg
Article weight:
1.00 Kg
Master Control System 1
Modular expandable !
Set contains:
MCS 1 - Master Control System
Power supply üvia additional modules.
Update capable via USB connection.
Connection to additional modules via BUS system.
It can be up to 3 EP Zusatzgeräte and other modules are connected.
(lxwxh) 125 x 75 x 32 mm

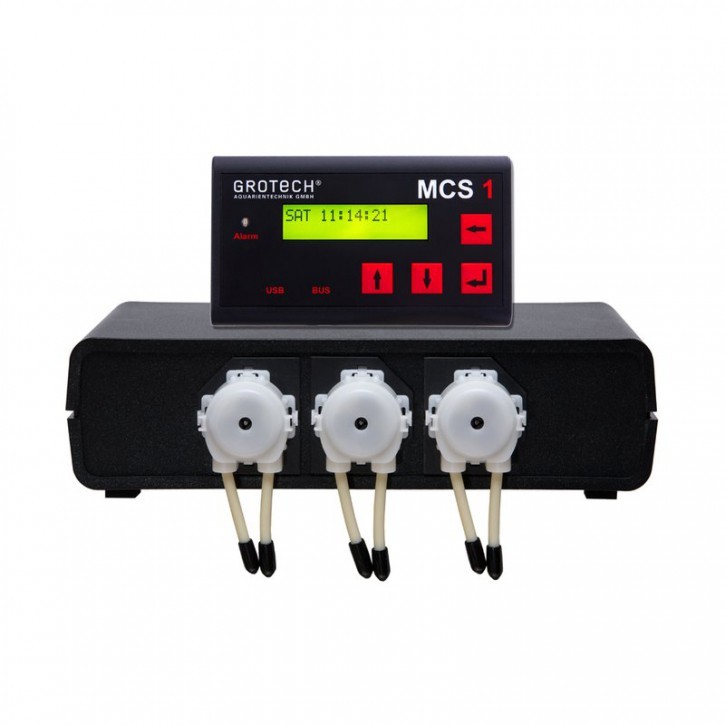

EP 3-MCS + 3 dosing pumps
Dosing pump for the daily automatic re-dosing of trace elements.
By menu-driven programming are at all channels dosing quantity, time, and frequency individually adjustable and can be switched off on a daily basis.
Adjustable dosing amount 0-2999ml/day.
Dosage frequency up to 24 times per day.
Calibratable.
All pumps are suitable for iodine!
(lxwxh) 150 x 230 x 60 mm
Power supply, connecting cable, USB cable, extension hose for pumps.
Made in Germany !
WEEE Reg. No. DE 35240640
Shipping weight:
1.60 Kg
Article weight:
1.50 Kg
Master Control System 1
Modular expandable !
Set contains:
MCS 1 - Master Control System
Power supply üvia additional modules.
Update capable via USB connection.
Connection to additional modules via BUS system.
It can be up to 3 EP Zusatzgeräte and other modules are connected.
(lxwxh) 125 x 75 x 32 mm

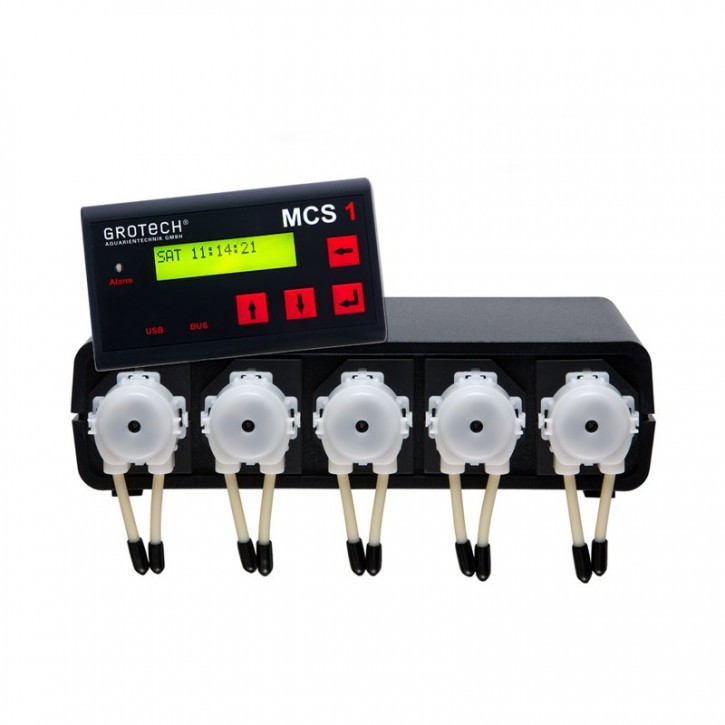

EP 5-MCS + 5 dosing pumps
Dosing pump for the daily automatic re-dosing of trace elements.
By menu-driven programming are at all channels dosing quantity, time, and frequency individually adjustable and can be switched off on a daily basis.
Adjustable dosing amount 0-2999ml/day.
Dosage frequency up to 24 times per day.
Calibratable.
All pumps are suitable for iodine!
(lxwxh) 150 x 230 x 60 mm
Power supply, connecting cable, USB cable, extension hose for pumps.
Made in Germany !
WEEE Reg. No. DE 35240640
Shipping weight:
1.70 Kg
Article weight:
1.50 Kg

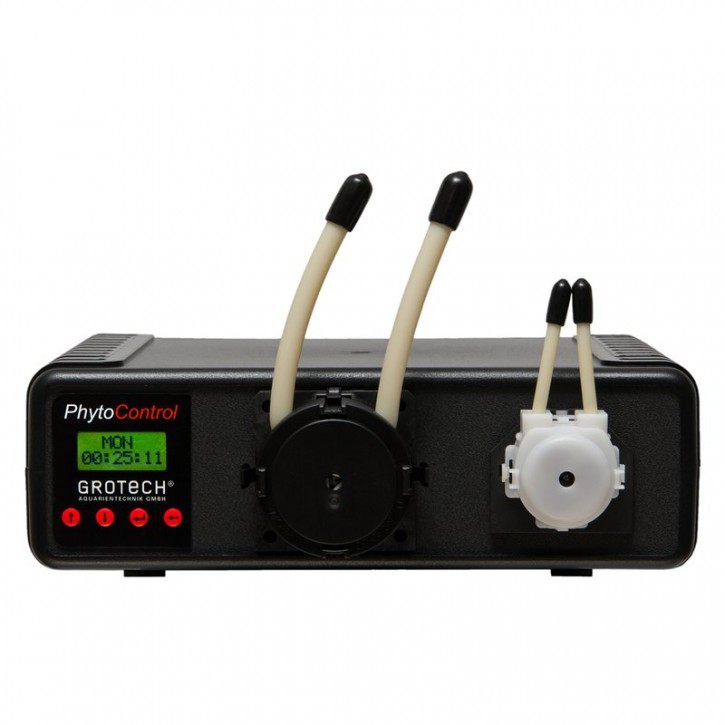

PhytoControl - The dosing pump for phytoplankton.
The PhytoControl automatically doses several times a day.
the set amount of plankton, the nutrient Phytofood and
supplies the PhytoBreeder with power.
Furthermore, the light source of the PhytoBreeder is switched on and off in the
optimal lighting cycle on and off.
PhytoControll, dosing pump for the plankton reactor..
Turns the PhytoBreeder into a phytoplankton flow-through filter.
Size 220 x 80 x 70 (lxwxh) 85-250VAC 5W
Made in Germany !
WEEE Reg. No. DE 35240640
Shipping weight:
1.00 Kg
Article weight:
1.00 Kg

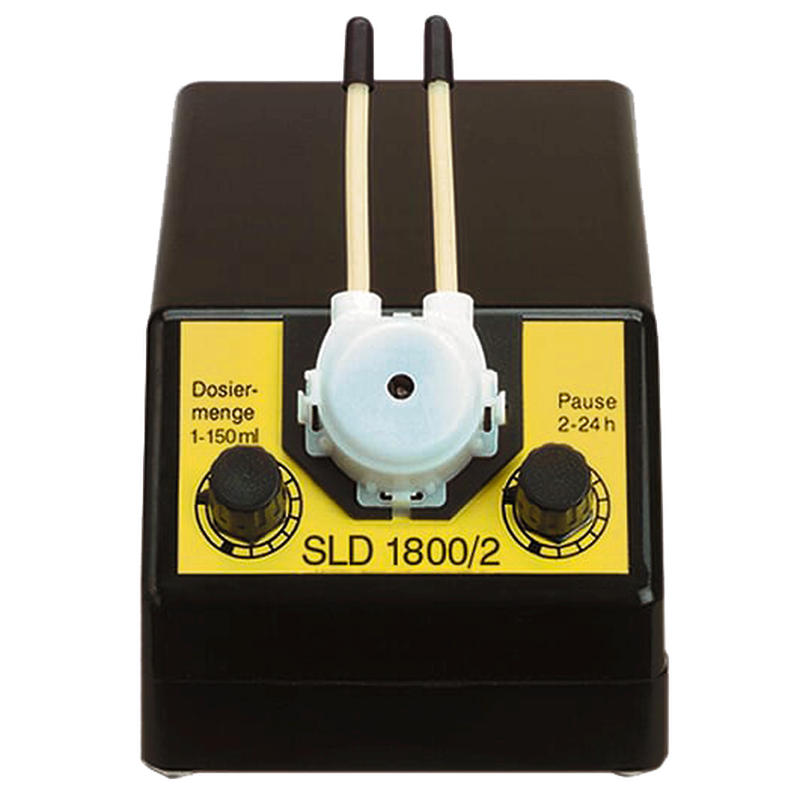

Microprocessor-controlled dosing pump for daily automatic re-dosing of liquids.The SLD 1800 switches a dosing pump integrated in the housing on and off and thus doses a liquid to the aquarium one or more times a day.The desired daily dosing quantity is set by means of two rotary controls (pump quantity 1-150 ml and pause times 2-24 h).Min. dosing quantity 1 ml/day (1 ml/pause 24 h)Max. Dosage amount 1800ml/day (150ml/break 2 h)SLD 1800 AC 100-250 V / 5WDimensions (lxwxh) 160 x 100 x 85mm Made in Germany !WEEE Reg. No. DE 35240640

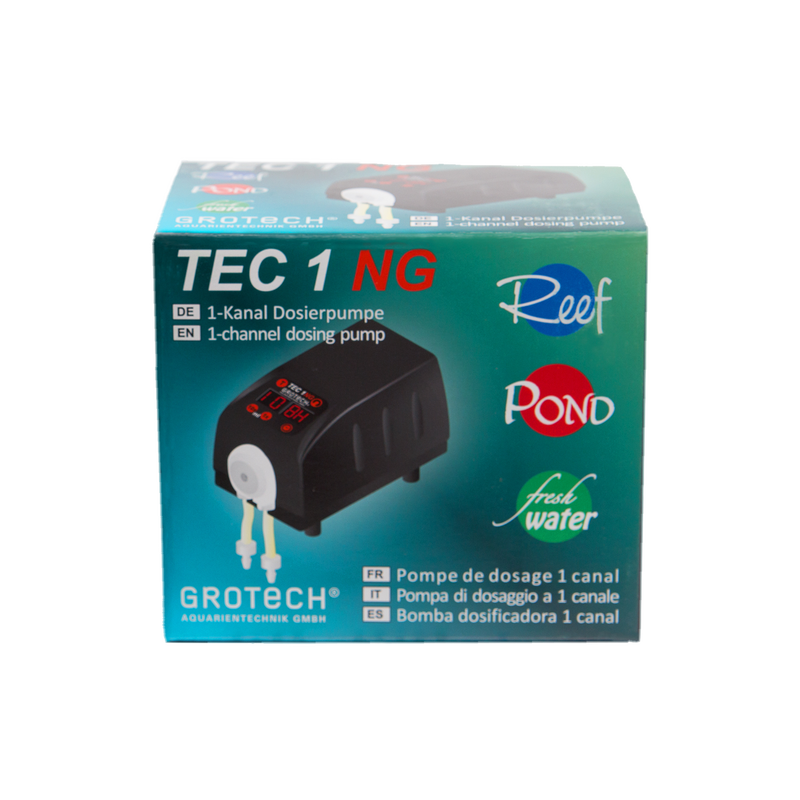

TEC 1 NG - 1 - channel dosing pumpThe Grotech TEC1NG is a microprocessor-controlled dosing pump for automatic dosing of liquids. Concepted this dosing pump to supply the marine aquarium as well as the freshwater aquarium with trace elements or fertilizer.Through the use of dosing pumps, a continuous supply of trace elements or fertilizer can be ensured.Thus, the trace element concentration remains over the days at a constant level and larger fluctuations are avoided. This ensures an optimal, constant supply of trace elements or fertilizer.Technical data:- Adjustable dosing amount 1 - 99ml- Dosing frequency 1 times every 9 days up to 24 times per day.- Calibratable- Easy operationTEC 1 NGAC 100-240 V / 50-60 Hz / 2.2 W(lxwxh) 110 x 70 x 70 mmWEEE Reg.No. DE 35240640
