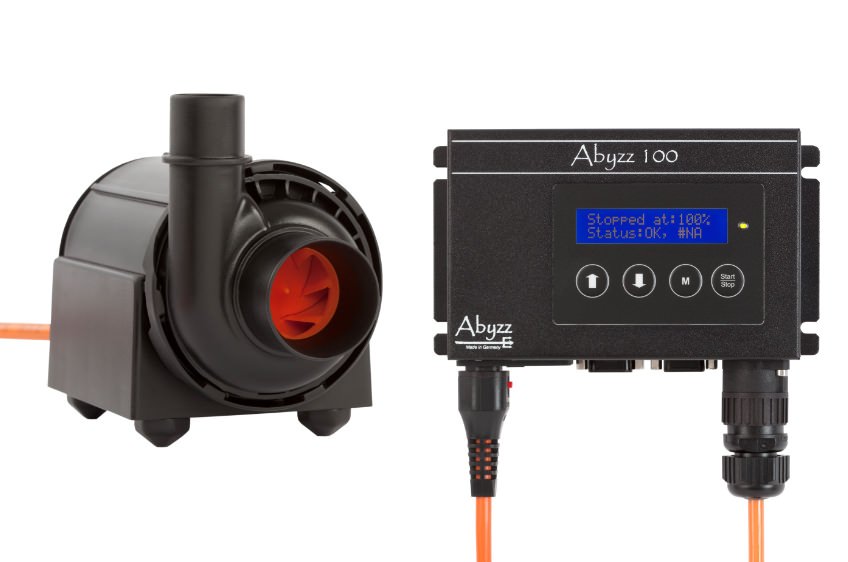

Abyzz A100 - Adjustable high performance pumpThe compact Abyzz A100 pump is in no way inferior to the larger Abyzz pumps in the choice of materials used. It consists of programmable, powerful menu-controlled electronics (driver) and a sine-commutated synchronous motor (pump).Operation with extra-low voltage (12V) enables safest use in all applications. The integrated bearing flushing provides optimum protection against calcification and, in conjunction with the silicon carbide bearings used, a titanium rotor and a special carbide shaft, ensures low-maintenance operation.The processed materials are designed for long service life and meet the highest requirements and quality standards. The product is developed and produced in Germany by venotec: "Made in Germany".Special features    Adjustable speed range (0...100%)   Programmable control (e.g. shaft and random mode)   Extensive protective functions against e.g.. Dry running, overtemperature and overcurrent   Soft start   Bus-capable interface for peripheral devices   Lockable plug contacts    Low noise operation   Motor operating voltage 12V   Rotatable motor baseApplications   Freshwater and marine aquariums    Pond filtration systems   BrooksScope of supply   Abyzz A100 pump and driver    Mains lead (1.5m) and connecting lead   Instruction manualSet up either submerged or dry in piping, not self-priming.Inlet/outlet connections are suitable for PVC/ABS adhesive fittings. Additional Information weight 5 kg size 340 × 250 × 140 mm conveyor performance maximum. 8,500 l/h Conveyor performance nominal. 7,300 l/h Promotional height maximum. 6.0 m Maximum operating pressure. 1.2 bar Maximum diving depth. 2.0 m Connections-Inlet/Outlet. 40 mm / 25 mm Pipe length pump. 3.0 m take-up_performance. 5 ... 100 W operating voltage 90 ... 240 V~, 50 ... 60 Hz ambient temperature +2°C ... +40°C datasheetAbyzz A100_datasheet (PDF)

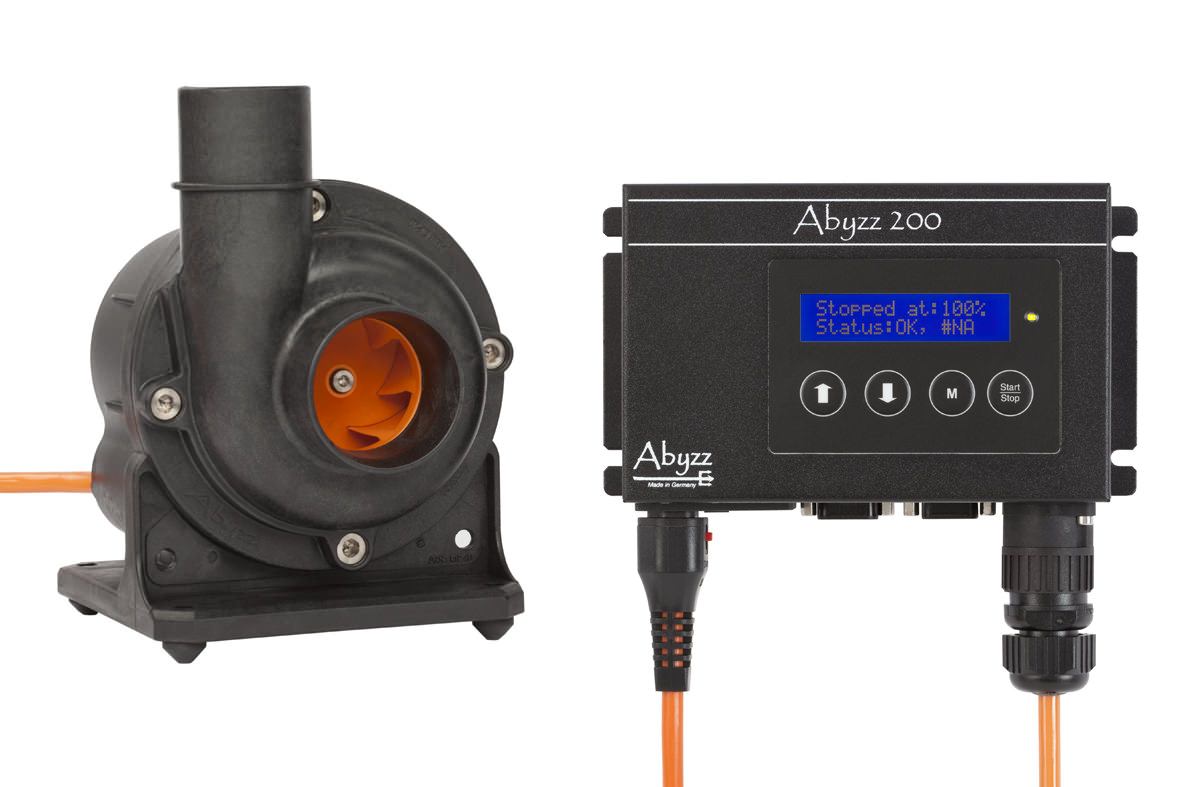

The Abyzz A200 pump with titanium rotor consists of programmable, powerful menu-controlled electronics (driver) and a sine-commutated synchronous motor (pump).The high efficiency of the motor, in conjunction with the speed adjustable to your power requirements, makes the pump an energy-saving solution. The integrated bearing flushing provides optimum protection against calcification and, in conjunction with the silicon carbide bearings used and a special carbide shaft, ensures low-maintenance operation.The processed materials are designed for long service life and meet the highest requirements and quality standards. The product is developed and produced in Germany by venotec: "Made in Germany".Special features    Adjustable speed range (0 ... 100%)   Programmable control (e.g. shaft and random mode)   Extensive protection functions against e.g. Dry running, overtemperature and overcurrent   Soft start   Bus-capable interface for peripheral devices   Lockable plug-in contacts    Low-noise operationApplications   Freshwater and marine aquaristics    Pond filter systems    BrooksScope of supply    Abyzz A200 pump and driver   Mains cable (1.5 m) and connecting cable    Instruction manualPositioning optionally submerged or dry in piping, not self-priming.Inlet/outlet connections are suitable for PVC/ABS adhesive fittings. Additional Information weight 5 kg size 340 × 250 × 140 mm conveyor performance maximum. 17,000 l/h Conveyor performance nominal. 14,500 l/h Promotional height maximum. 8.8 m Maximum operating pressure. 1.2 bar Maximum diving depth. 2.0 m Connections-Inlet/Outlet. 50 mm / 40 mm Pipe length pump. 10.0 m, 3.0 m take-up_performance. 5 ... 200 W operating voltage 230 V~, 50...60 Hz ambient temperature +2°C ... +40°C Line length. 3.0 m,

The Abyzz A400 pump with titanium rotor consists of programmable, powerful menu-controlled electronics (driver) and a sine-commutated synchronous motor (pump).The high efficiency of the motor, in conjunction with the speed adjustable to your power requirements, makes the pump an energy-saving solution. The integrated bearing flushing provides optimum protection against calcification and, in conjunction with the silicon carbide bearings used and a special carbide shaft, ensures low-maintenance operation.The processed materials are designed for long service life and meet the highest requirements and quality standards. The product is developed and produced in Germany by venotec: "Made in Germany".Special features    Adjustable speed range (0 ... 100%)   Programmable control (e.g. shaft and random mode)   Extensive protection functions against e.g. Dry running, overtemperature and overcurrent   Soft start   Bus-capable interface for peripheral devices   Lockable plug-in contacts    Low-noise operationApplications   Freshwater and marine aquaristics    Pond filter systems    StreamsScope of supply    Abyzz A400 pump and driver   Mains lead (1.5 m) and connecting lead    Instruction manualPositioning either submerged or dry in piping, not self-priming.The inlet/outlet connections are suitable for PVC/ABS adhesive fittings. Additional Information weight 5 kg size 420 × 290 × 134 mm conveyor performance maximum. 23,500 l/h Conveyor performance nominal. 18,600 l/h Promotional height maximum. 12.5 m Abstream speed maximum. 7.5 m/s Absorption speed nominal. 6.4 m/s Maximum operating pressure. 1.2 bar Maximum diving depth. 2.0 m Connections-Inlet/Outlet. 50 mm / 40 mm Pipe length pump. 10.0 m, 3.0 m take-up_performance. 4 ... 400W operating voltage 230 V~, 50...60 Hz ambient temperature +2°C ... +40°C Line length. 3.0 m, Data-sheetAbyzz A400_Data-sheet (PDF)
